What Is The Production Process Of Ferrosilicon?

Ferrosilicon is an important ferroalloy widely used in steel metallurgy and foundry industry. This article will comprehensively introduce the production process of ferrosilicon, including raw material selection, production methods, process flow, quality control and environmental impact.

Raw materials for ferrosilicon production

Main raw materials
The main raw materials required for ferrosilicon production include:

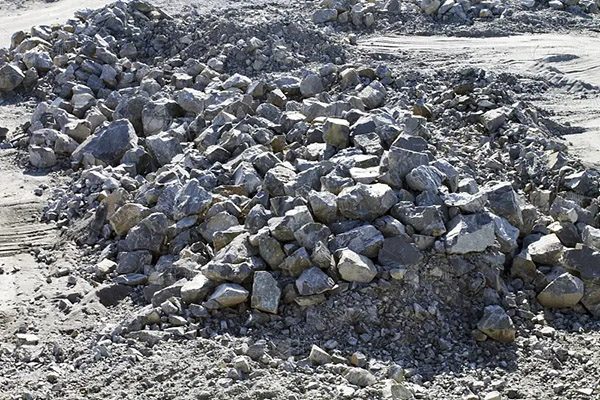

Quartz: Provide silicon source
Iron ore or scrap steel: Provide iron source
Reducing agent: Usually coal, coke or charcoal is used

The quality and ratio of these raw materials directly affect the production efficiency of ferrosilicon and the quality of the final product.

Raw material selection criteria
Selecting high-quality raw materials is the key to ensure the success of ferrosilicon production. The following are some criteria to consider when selecting raw materials:

Quartz: Quartz with high purity and silicon dioxide content of more than 98% should be selected. The impurity content, especially aluminum, calcium and phosphorus content should be as low as possible.
Iron ore: Iron ore with high iron content and low impurity content should be selected. Scrap steel is also a good choice, but attention should be paid to the alloying element content.
Reducing agent: A reducing agent with high fixed carbon content and low volatile matter and ash content should be selected. For the production of high-quality ferrosilicon, charcoal is usually selected as a reducing agent.

The choice of raw materials not only affects the product quality, but also affects the production cost and environmental impact. Therefore, these factors need to be considered comprehensively when selecting raw materials.


Ferrosilicon production methods

1. Electric arc furnace method
The electric arc furnace method is currently the most commonly used method for ferrosilicon production. This method uses the high temperature generated by the electric arc to melt the raw materials and has the following characteristics:

High efficiency: It can quickly reach the required high temperature
Precise control: The temperature and reaction conditions can be accurately controlled
Environmentally friendly: Compared with other methods, it has less pollution

The process flow of the electric arc furnace method mainly includes the following steps:

Raw material preparation and batching
Furnace loading
Electric heating
Smelting reaction
Taking out of the furnace and pouring
Cooling and crushing

2. Other production methods
In addition to the electric arc furnace method, there are some other ferro silicon production methods. Although they are less used, they are still used in certain specific cases:

Blast furnace method: Suitable for large-scale production, but with high energy consumption and greater environmental impact.
Induction furnace method: suitable for small batch, high purity ferrosilicon production.
Plasma furnace method: emerging technology, low energy consumption, but large equipment investment.
These methods have their own advantages and disadvantages, and the selection of the appropriate production method requires comprehensive consideration according to the specific situation.


Ferrosilicon production process

1. Raw material processing
Raw material processing is the first step in ferrosilicon production, including the following links:
Screening: Classify the raw materials according to particle size
Crushing: Crushing large pieces of raw materials to the appropriate size
Drying: Remove moisture from the raw materials to improve production efficiency
Batching: Prepare a suitable proportion of raw material mixture according to production requirements
The quality of raw material processing directly affects the efficiency of the subsequent production process and product quality, so each link needs to be strictly controlled.

2. Smelting process
Smelting is the core link of ferrosilicon production, which is mainly carried out in electric arc furnaces. The smelting process includes the following stages:

Charging: Load the prepared raw material mixture into the electric arc furnace
Electric heating: Pass a large current into the furnace through the electrode to generate a high-temperature arc
Reduction reaction: At high temperature, the reducing agent reduces silicon dioxide to elemental silicon
Alloying: Silicon and iron combine to form ferrosilicon alloy
Adjusting composition: Adjust the alloy composition by adding an appropriate amount of raw materials

The entire smelting process requires precise control of temperature, current and raw material addition to ensure smooth reaction and stable product quality.

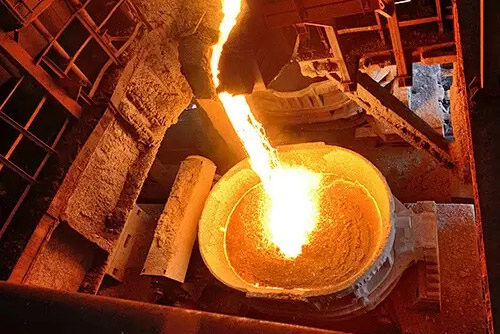

  3. Unloading and pouring
When the ferrosilicon smelting is completed, unloading and pouring operations are required:

Sampling and analysis: Sampling and analysis before unloading to ensure that the alloy composition meets the standard
Unloading: Release the molten ferrosilicon from the electric arc furnace
Pouring: Pour the molten ferrosilicon into a pre-prepared mold
Cooling: Let the poured ferrosilicon cool naturally or use water to cool

The unloading and pouring process requires attention to safe operation, and the pouring temperature and speed must be controlled to ensure product quality. 4. Post-processing After cooling, ferrosilicon needs to undergo a series of post-processing processes:

Crushing: crushing large pieces of ferrosilicon into the required size

Screening: classifying according to the particle size required by the customer

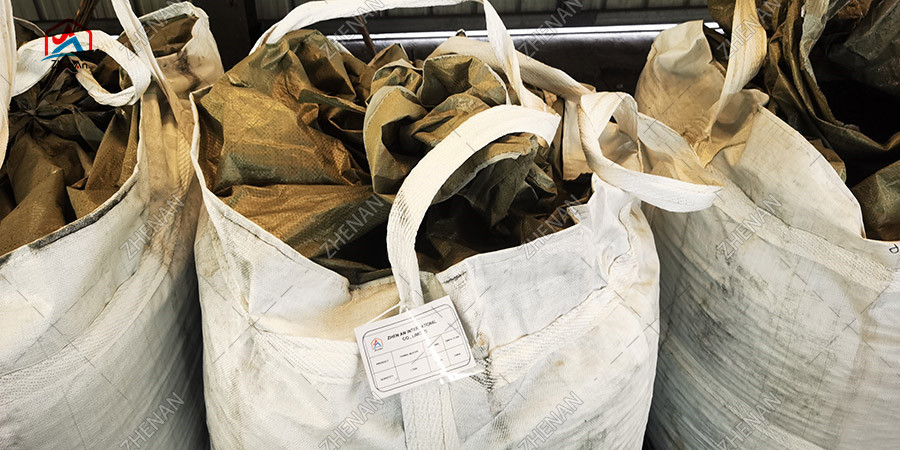

Packaging: packaging the classified ferrosilicon

Storage and transportation: storage and transportation in accordance with specifications

Although the post-processing process seems simple, it is equally important for ensuring product quality and meeting customer needs.


Quality control of ferrosilicon production

1. Raw material quality control
Raw material quality control is the first line of defense to ensure the quality of ferrosilicon products. It mainly includes the following aspects:

Supplier management: establishing a strict supplier evaluation and management system
Incoming material inspection: sampling and testing each batch of raw materials
Storage management: reasonably arranging the storage of raw materials to prevent contamination and deterioration

Through strict raw material quality control, the quality risk in the production process can be greatly reduced.

2. Production process control
Production process control is the key to ensuring the stability of ferrosilicon quality. It mainly includes the following aspects:

Process parameter control: strictly control key parameters such as temperature, current, and raw material ratio
Online monitoring: use advanced online monitoring equipment to monitor production conditions in real time
Operation specifications: formulate detailed operating procedures to ensure that operators strictly implement them

Good production process control can not only improve product quality, but also improve production efficiency, reduce energy consumption and raw material consumption.
  3. Product inspection
Product inspection is the last line of defense for ferrosilicon quality control. It mainly includes the following aspects:

Chemical composition analysis: detect the content of elements such as silicon, iron, and carbon
Physical property testing: detect physical properties such as hardness and density
Batch management: establish a complete batch management system to ensure product traceability

Through strict product inspection, Zhenan Metallurgy can ensure that each batch of ferrosilicon products shipped meets quality standards.
